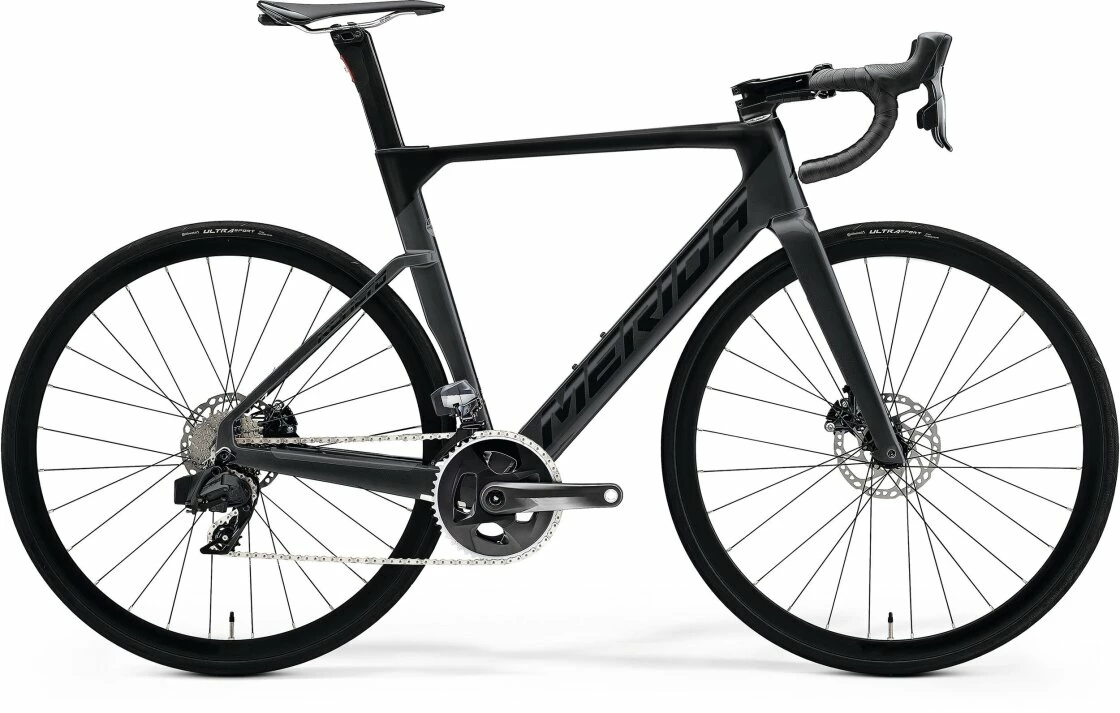

Merida Reacto Rival Edition

Rahmen

REACTO CF3 IV
material: carbon
700x30C max. wheelsize
100×12/ 142x12mm axle standard
BB86,5 bottom bracket standard

Gabel

REACTO CF3 IV Disc, material: carbon, 700x30C max. wheelsize

Schaltwerk

Sram Rival eTap AXS, SS

Kurbel

Sram Rival eTap AXS, 48-35 teeth
165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL

Schalthebel

Sram Rival eTAP AXS HRD

Bremse

Sram ED Rival eTap AXS, Hydraulic Disc

Bremsscheibe

Sram DB Rotor Centerlock Paceline, 160mm

Bremshebel

Sram ED Rival eTap AXS

Lenker

MERIDA EXPERT CW, material: aluminium
380mm (XXS), 400mm (XS-S), 420mm (M), 440 (L-XL)

Steuersatz

FSA ACR

Vorbau

FSA SMR ACR, material: aluminium, -6° stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL

Tretlager

Sram Pressfit Dub, Presfit 86.5

Spacer

FSA ACR

Griffe

MERIDA ROAD Expert

Kassette

CS XG 1250 D1, 10-36 teeth, 12 speed

Laufradsatz

Fulcrum Racing 800 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 34mm height, Centerlock, material: aluminium, Tubeless ready (tubeless tape and valves not included)

Achse

MERIDA EXPERT SL, including removable lever, 6/4mm allen key

Reifen

Continental Grand Sport Race, 700x25C, fold

Kette

Sram Rival 12s

Umwerfer

Sram Rival eTap AXS

Sattelstütze

MERIDA TEAM CW, Aero shape, 15mm setback, Carbon

Sattel

MERIDA EXPERT SL, V-mount, incl. MERIDA minitool

Sattelklemme

MERIDA REACTO Aero

Rücklicht

REACTO light seat post + Battery

zulässiges Gesamtgewicht

120 kg
