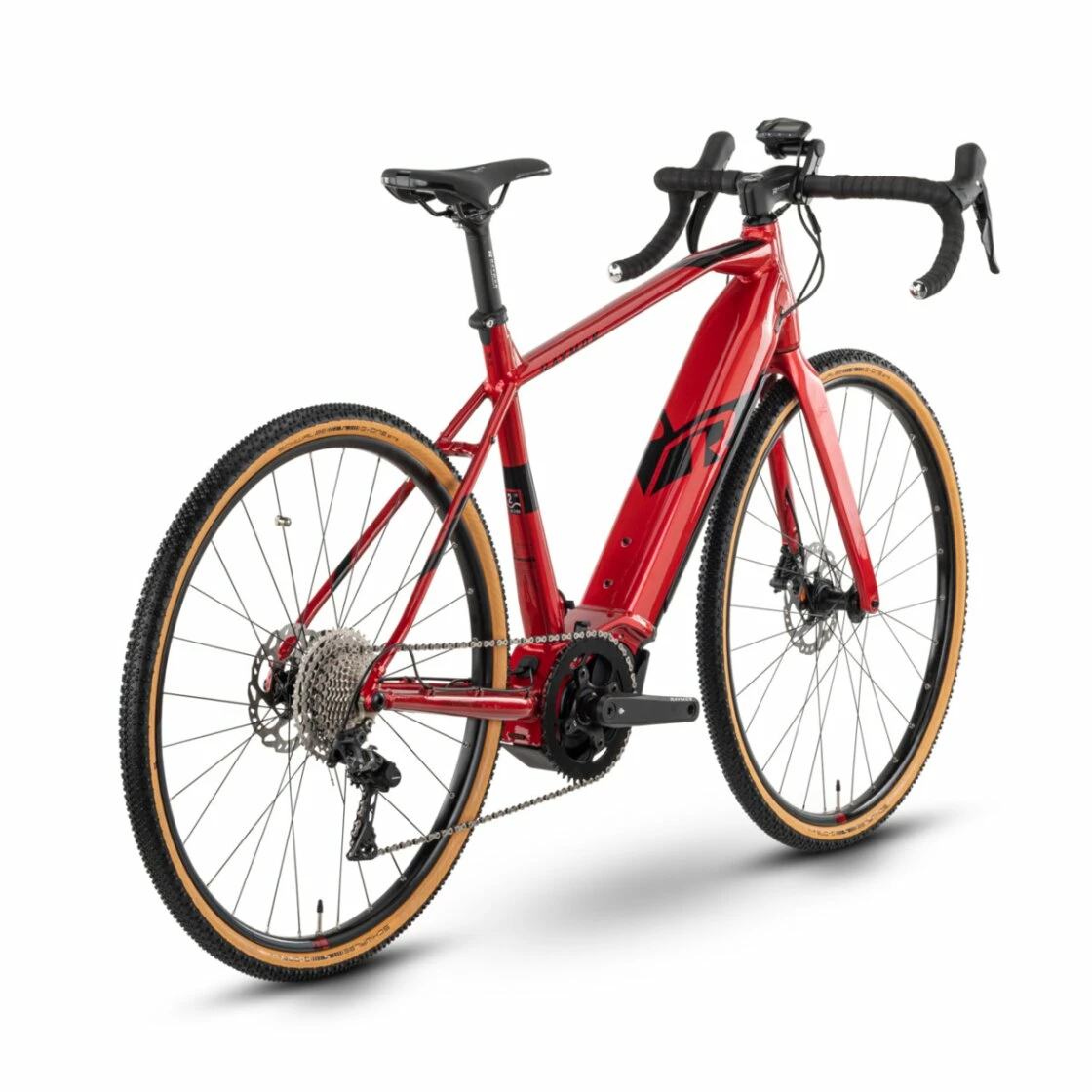

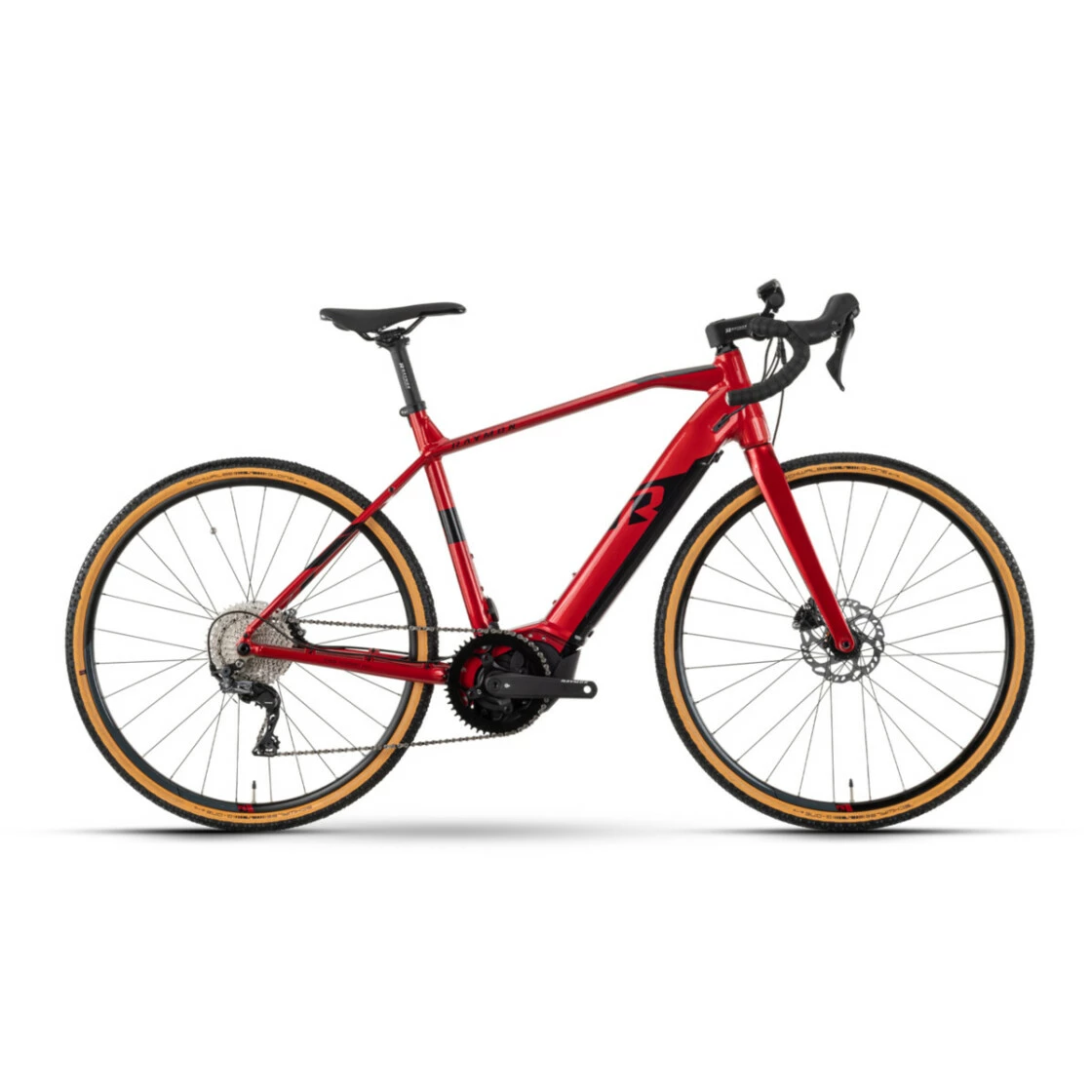

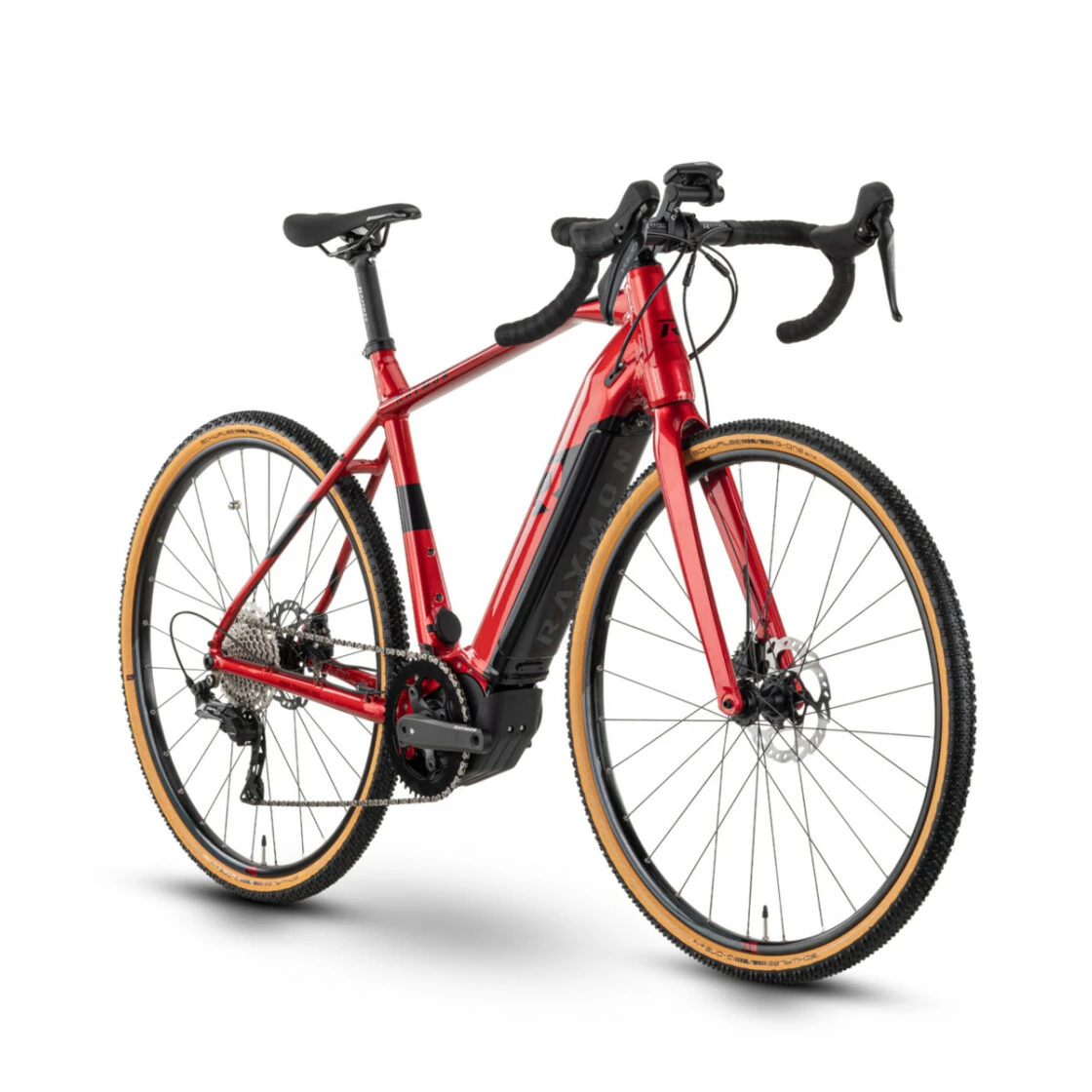

Raymon GravelRay E 7.0

Rahmen

28″;, Alloy 6061, Integrated battery

Gabel

Alloy Gravel Disc, tapered

Motor

Yamaha PW-ST, 250 W, 70 Nm

Akku

Yamaha ML500, 500 Wh, 36 V

Ladegerät

Yamaha rapid charger, 4 A

Bedieneinheit

Integrated into display

Display

Yamaha Display A, LCD-Display

Bremse hinten

Shimano BR-RX400, 2-piston, Hydraulic disc brake

Bremsscheibe hinten

Shimano SM-RT70, 160 mm, Center lock

Bremse vorne

Shimano BR-RX400, 2-piston, Hydraulic disc brake

Bremsscheibe vorne

Shimano SM-RT70, 160 mm, Center lock

Bremshebel

Shimano BL-RX600, Brake lever, adjustable

Schaltwerk

Shimano GRX, RD-RX812, Shadow Plus, 11-S

Schalthebel

Shimano GRX, ST-RX600

Kette

KMC e11S

Kettenblatt

R Raymon, Narrow Wide, 48 T

Kurbelarm

R Raymon EC40, Aluminum forged, JIS

Zahnkranz

Shimano CS-M5100, 11-42 T

Hinterrad

Rim: Mach 1 650E, With eyelets, Tubeless ready
Hub: R Raymon DA210R, Center lock, 12×142 mm, thru axle, HG

Vorderrad

Rim: Mach 1 650E, With eyelets, Tubeless ready
Hub: R Raymon DA210F, Center lock, 12×100 mm, thru axle

Felgen

Mach 1 650E, With eyelets, Tubeless ready

Hinterradnabe

R Raymon DA210R, Center lock, 12×142 mm, thru axle, HG

Vorderradnabe

R Raymon DA210F, Center lock, 12×100 mm, thru axle

Speichen

Mach1, stainless steel

Reifen

Schwalbe G-One Bite, Performance, 40-622, 28×1.5

Griffe

R Raymon Tape

Klemmschelle

R Raymon 34,9, Hex socket

Lenker

R Raymon Drop 31.8 mm, 440 mm, Drop: 116 mm

Sattel

R Raymon

Sattelstütze

R Raymon, 31.6 mm, 350 mm, Patent

Vorbau

R Raymon 31.8, 6 °, Ahead

Steuersatz

R Raymon ZS44/ZS56

Kettenführung

Direct Mount

zul. Gesamtgewicht

120 kg
