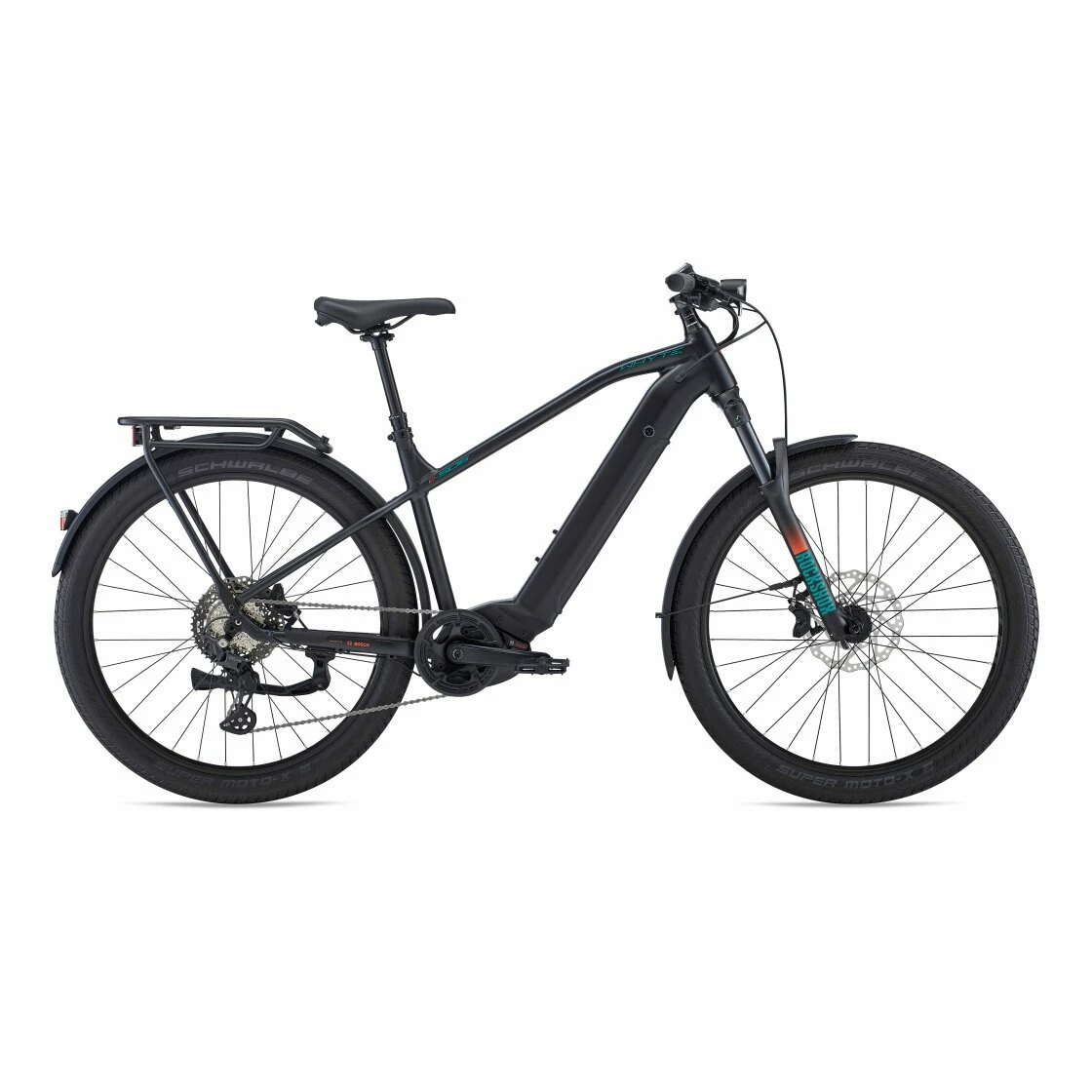

Whyte E-506

Rahmen

6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts

Gabel

RockShox 35 Silver R 27.5″, 120mm Travel, 37mm Offset, Coil, Fast Black Coating, Adjustable Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite

Nabe

Vorne/Front: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Hinten/Rear: Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole

Speichen

DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples

Felge

WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole

Reifen

Schwalbe, Super Moto-X, 27.5″ x 2.4, Greenguard Puncture Protection

Schalthebel

Shimano M5130 Deore 10 Speed

Schaltwerk

Shimano M5130 Deore, GS, 10 Speed

Kassette

Shimano CS-LG600, 10 Speed, 11-43

Kette

Shimano CN-LG500, 10 Speed

Kurbel

Whyte, Steel narrow/wide, 160mm, Direct Mount 38T for Bosch Performance Line CX, Black

Sattelstütze

Whyte drop.it, 30.9, S 125mm, M/L/XL 150mm Travel, Paddle Remote Lever

Sattel

Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle

Lenker

Whyte 6061 Alloy, 25mm Rise, 31.8mm, 720mm Wide

Vorbau

Whyte Alloy 6061, 60mm Extension

Griffe

Whyte Custom Dual Density Lock-on

Bremse

Vorne/Front: Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount
Hinten/Rear: Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount, Internal Routing

Bremshebel

Tektro Orion

Motor

Bosch Performance Line CX (25km/h) 85Nm

Akku

Bosch Power Tube PT500 Horizontal

Display

Bosch Purion Performance Line
